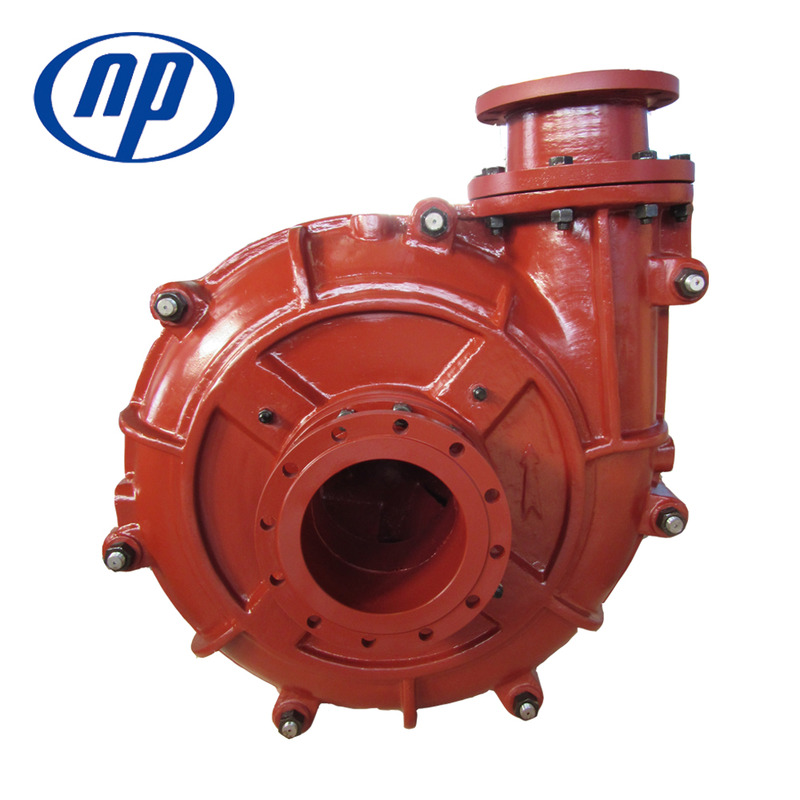

200ZJ-65 New Design Long Life Shijiazhuang Naipu Mud Pump

1 Set
MOQ
$15,000.00(>=1 Sets)
τιμή
200ZJ-65 New Design Long Life Shijiazhuang Naipu Mud Pump
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Features: Long Life
Warranty: 1 year
Customized support: OEM, ODM, OBM
Model Number: 200ZJ-65
Application: Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, Wastewater Transport and Flood Control
Horsepower: 333
Power Source: Electric
Pressure: Low pressure
Structure: Single-stage Pump
Cable Length: 0
Outlet Size: 200 mm
Voltage: 380v, 415v, 600v...
Power: 250 kw
Lubricating: Grease
Theory: Centrifugal Pump
Product name: Slurry Pump
Material: Cr27
Type: Horizontal
Impeller: Closed Impeller
Πιστοποίηση: ce, ISO
Βασικές πληροφορίες
Πιστοποίηση: ce, ISO
Model Number: 200ZJ-65
Πληρωμής & Αποστολής Όροι
Packaging Details: Export fumigation wooden box
Supply Ability: 500 Set/Sets per Month
Περιγραφή προϊόντων
Product Description

200ZJ-65 New Design Shijiazhuang Naipu Slurry Pump

ZJ series slurry pump is a series of products developed by our company based on market demand and absorbing domestic and foreign advanced technology. The pump adopts excellent hydraulic model design, high efficiency and good performance. Double pump housing structure, easy installation and maintenance. The technical conditions of this product comply with the standard of JB / T8096-1998 "Centrifugal slurry pump"

ZJ Mining Slurry Pump Typical Application

Concentrate, refinery, tailings pulp Ash removal from power station Coal washing plant conveying medium Smelter Conveying Slurry

ZJ Horizontal Slurry Pump Working Conditions

Speed: Motor directly connected 2900/1480/980/730 / 590r / min         Belt-to-wheel transmission Medium temperature: generally ≤80 ℃         Special up to 110 ℃ Solid-liquid mixture weight concentration: mortar concentration ≤ 45%         Slurry concentration ≤60% Flow range: 30-2000m3 / h Head range: 15-130m
Product Paramenters

ZJ series slurry pump model meaning

200ZJ （G） -I-A60 200 ---- Pump outlet diameter (mm)   ZJ ---- slurry pump (G) ---- High lift (can be omitted) I (II) ---- I is the first-stage pump or single-stage pump           (II is the secondary pump) A ---- Number of impeller blades 60 ---- impeller diameter (mm)
Parts
Part Material
Standard
Volute
KmTBCr27
GB8263-87
Front Liner
KmTBCr27
GB8263-87
Back Liner
KmTBCr27
GB8263-87
Impeller
KmTBCr27
GB8263-87
Gland Packing Box
KmTBCr27
GB8263-87
Shaft Sleeve
KmTBCr27
GB8263-87
Shaft
Steel 45#
GB699-88
Pump Casing
HT200
GB9439-88
Pump Base
HT200
GB9439-88
ZJ slurry pump main technical parameters（1）
Type
Max Power
Clear Water Performance
Max solid
Weight
Q
H
n
η
NPSH
(KW)
(m3/h)
(m)
(r/min)
(%)
(m)
(mm)
(Kg)
300ZJ(G)-I-A100
450
464-1826
15.3-65.2
300-590
80. 7
3. 0
88
5750
300ZJ(G)-I-A95
400
441-1735
13.8-58.8
300-590
77. 7
3. 0
88
5600
300ZJ(G)-I-A90
560
505-1844
21.2-80.0
400-730
81. 5
3. 8
85
5000
300ZJ(G)-I-A85
450
477-1742
18.9-69.6
400-730
78. 7
3. 8
85
4850
300ZJ(G)-I-A70
630
635-2333
16.0-76.8
490-980
80. 4
3. 9
92
4150
300ZJ(G)-I-A65
500
589-2166
13.8-66.2
490-980
78. 4
3. 7
92
4000
300ZJ(G)-I-A56
250
395-1568
9.7-46.0
490-980
81.3
3. 5
96
2950
250ZJ(G)-I-A90
450
378-1374
22.3-82.4
400-730
73.8
3.4
69
5150
250ZJ(G)-I-A85
800
376-1504
30.1-129.8
490-980
75.6
3. 5
69
5035
250ZJ(G)-I-A83
800
367-1468
28.7-123.8
490-980
74.6
3. 5
76
4680
250ZJ(G)-I-A80
710
354-1415
26.7-115.0
490-980
72. 6
3. 4
76
4530
250ZJ(G)-I-A78
630
345-1380
25.4-109.3
490-980
70.8
3. 2
76
4514
250ZJ(G)-I-A75
560
300-1480
20.8-98.4
490-980
76. 0
3. 0
72
3600
250ZJ(G)-I-A73
500
292-1441
19.7-93.2
490-980
76. 0
3. 0
72
4474
250ZJ(G)-I-A70
450
280-1380
18.1-85.7
490-980
74. 0
2.9
72
3590
250ZJ(G)-I-A68
450
272-1341
17.1-80.9
490-980
72.5
2.7
72
3466
250ZJ(G)-I-A65
315
299-1249
15.4-69.0
490-980
77. 5
3.0
72
3446
250ZJ(G)-I-A63
315
290-1211
14.4-64.3
490-980
76. 5
3.0
72
3432
250ZJ(G)-I-A60
280
276-1152
13.1-58.4
490-980
73. 9
2.8
72
3020
200ZJ(G)-I-A85
560
221-907
32.0-133.7
490-980
70. 5
2. 8
54
4110
200ZJ(G)-I-A75
355
225-900
22.8-103.0
490-980
74.5
3 . 0
56
3070
200ZJ(G)-I-A73
355
219-876
21.6-98.2
490-980
74.5
3 . 0
56
3056
200ZJ(G)-I-A70
315
205-976
19.4-86.4
490-980
75 . 6
2 . 8
56
2465
200ZJ(G)-I-A68
315
199-948
18.3-81.5
490-980
74 . 6
2 . 8
56
2453
200ZJ(G)-I-A65
250
235-950
16.4-72.0
490-980
80.0
2 . 5
62
2323
200ZJ(G)-I-A63
250
228-921
15.4-67.6
490-980
79.3
2 . 5
62
2311
200ZJ(G)-I-A60
200
218-870
13.9-64.0
490-980
82 . 7
2 . 5
62
2223
200ZJ(G)-I-A58
185
211-841
13.0-59.8
490-980
81 . 7
2 . 5
62
2214
150ZJ(G)-I-A70
185
93-400
20.0-91.2
490-980
62 . 3
2 . 0
37
2245
150ZJ(G)-I-A65
200
150-600
17.4-78.5
490-980
72.0
2 . 5
48
2223
150ZJ(G)-I-A63
185
146-582
16.3-73.7
490-980
75.0
2 . 5
48
2211
150ZJ(G)-I-A60
160
135-550
14.7-64.5
490-980
77.5
2 . 5
48
2203
Related Products

NPAH Slurry Pump.

10 inches G Sand Pump

Slurry Pump Parts

Site Application

China - Iron ore.

14/12 NPAH

Flow=2000m3/h, Head=40m, efficiency=76%

Outlet horizontal on the top of the pump, fulley enclosed protection, CRz drive

South Africa - Molybdenum Ore.

6/4 NPAH

Flow=300m3/h, Head=40.5m, efficiency=66%

Outlet horizontal on the bottom of the pump, fully enclosed protection, CV drive

Canada Lead - Zinc Ore.

8/6 NPAH

Flow=450m3/h, Head=34m, efficiency=70%

Outlet vertical upward, fully enclosed protection, ZVz drive

Russia - Copper Mine.

8 SV-AF

Flow=430m3/h, Head=20m, efficiency=52%

Vertical froth pump work for variety of flotation process, Eliminate foam, even in the case of insufficient feeding. BD drive

Zambia - Copper Mine.

100 RV-SP

Flow=150m3/h, Head=34m, efficiency=50%

Vertical slurry pump immersed in the pool or pit to work. Wet end parts with metal or rubber material. BD drive

Australia - Aluminum ore.

6 S-H

Flow=600m3/h, Single stage Head=90m efficiency=65%. Three pumps in series, total head 270 m to meet high-head, long-distance transport. Belt drive

Our Company

Factory

Shijiazhuang Naipu Pump Co., Ltd

Workshop

Naipu Machining Plant.

Warehouse

Finished Slurry Pumps.

Visiting

Clients Visiting Naipu Factory.

Related Slurry Pump Parts
Mining Slurry Pump Spares
Pump casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
Elastomer seal rings back all liner joints.
Throatbush - wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
